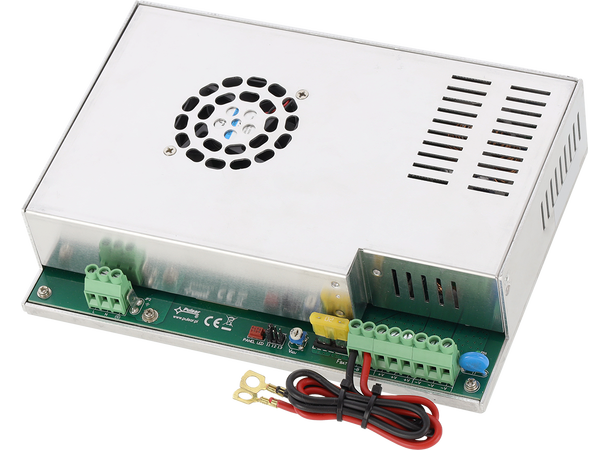

Strømforsyning 12 VDC med tilkobling til batteri for uavbrutt drift.
| Adapter type: |
Switching |
| Power voltage: |
200 ... 240 V AC |
| Output voltage: |
11 ... 13.8 V DC (buffer operation),
9.5 ... 13.8 V DC (battery operation)
|
| Output voltage adjustment: |
13,5 ... 14,4 V |
| Maximal load: |
20 A (total) |
| Battery charging current: |
2 A / 4 A / 8 A (set with the CHARGE jumper) |
| Output power: |
276 W |
| Efficiency: |
86 % |
| Number of outputs: |
3 pcs |
| Protections: |
Short-circuit
Overload
Overvoltage
Overvoltage
Discharge
Battery charge and maintenance control
|
| Main features: |
Battery cable (included) |
| Operation temp. / Relative humidity: |
-10 °C ... 40 °C / 20 % ... 90 % |
| Weight: |
1.19 kg |
| Dimensions: |
237 x 168 x 54 mm |
