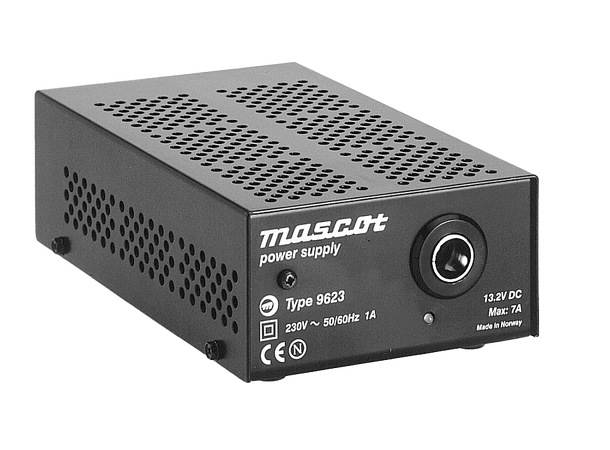

Desktop PSU, input 230V, max. out 96 W
Product Information
Fixed output voltages
Short circuit proof
Mains cord
Cord or Hella jack
LED on front

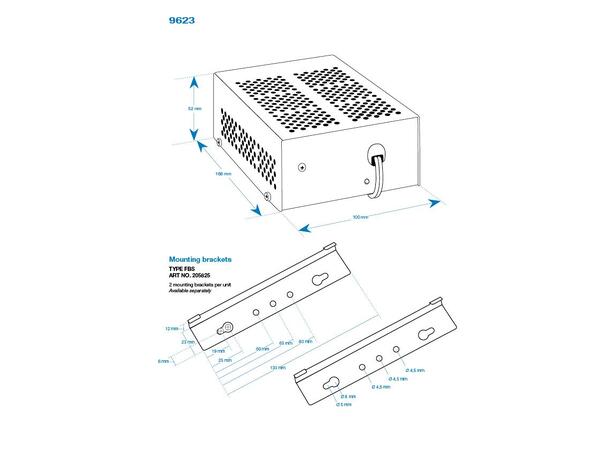

Mounting brackets available
Custom specifications on request
Custom specifications on request: output voltage, connectors, cords, logo print, housing/open frame/IP rating and certificates.
| Specification |
12V Version |
16V Version |
24V Version |
| Input voltage |
198–264V AC / 260–340V DC |
198–264V AC / 260–340V DC |
198–264V AC / 260–340V DC |
| Line frequency |
47–63Hz |
47–63Hz |
47–63Hz |
| Output voltage, nominal |
13.2V |
16V |
24V |
| Output voltage, adjustable |
12–14.5V |
15–18V |
22–28V |
| Max output power |
95W |
96W |
95W |
| Max. output current |
7A |
6A |
3.5A |
| Min. output current |
0A |
0A |
0A |
| Load regulation (0–100% load) |
< 3% |
< 2.5% |
< 2% |
| Mains regulation (198–264V, 100% load) |
< 0.6% |
< 0.6% |
< 0.5% |
| Ripple |
< 50mV p-p |
< 50mV p-p |
< 50mV p-p |
| Efficiency (at 100% load) |
0.83 |
0.84 |
0.85 |
| Switch frequency approx. |
40kHz |
40kHz |
40kHz |
| Overshoot (90–10% load variation) |
< 200mV |
< 200mV |
< 200mV |
| Undershoot (10–90% load variation) |
< 200mV |
< 200mV |
< 200mV |
| Current limitation approx. |
7.5A |
6.5A |
4.0A |
| Input surge current limitation |
< 30A |
< 30A |
< 30A |
