Details

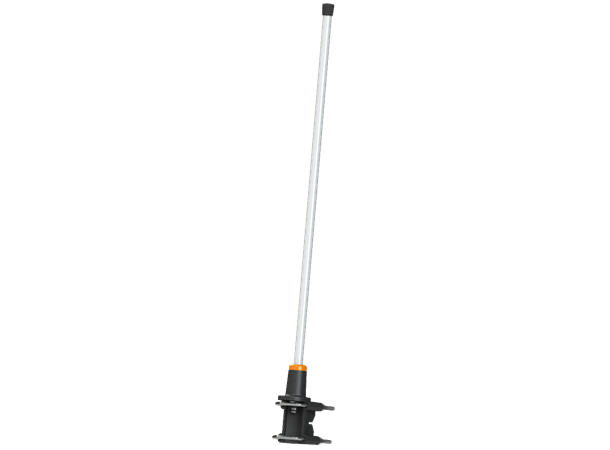

This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
-
High power antenna design
- Customer specified center frequency in X version
- No groundplane needed
Technical:
- Power: 150 Watt

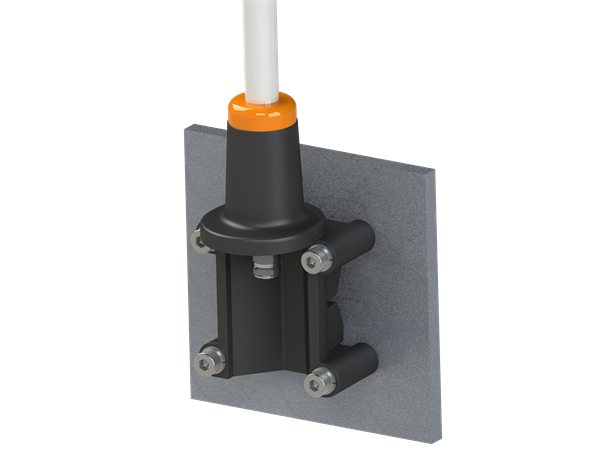

- Mounting: Fixed Tube Mounting Bracket. Stainless Steel Mounting Hardware included.

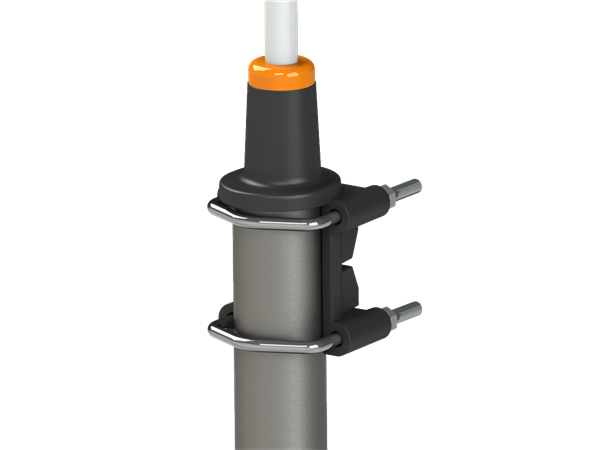

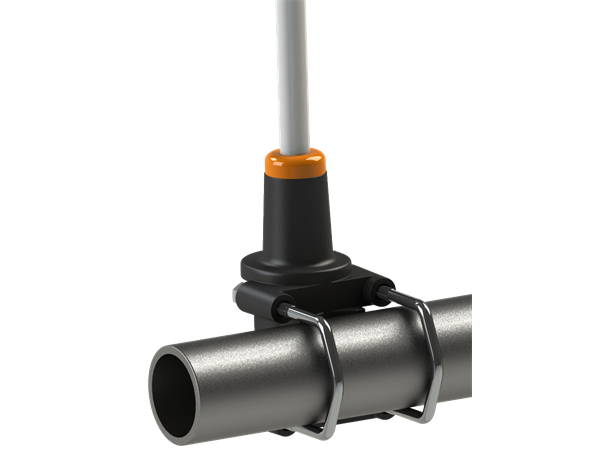

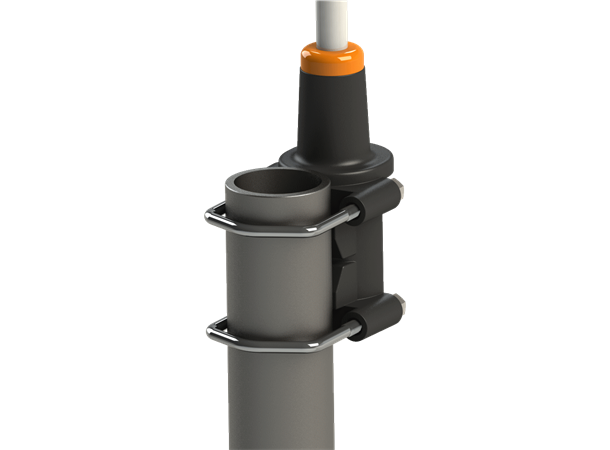

- Mounting place: On vertical or horizontal mast tube (Ø 30 – 60 mm)
- Connector: N-female
- Ingress protection: IP66
- Survival wind protection: 55 m/s (200 km/h)
- Operating temperature: -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
Model | Frequency (MHz) | Gain dBd (dBi) | Length (mm) | Item no.
BASE301-A | 118-124 | 3 (5,15) | 3500 | 22310-004A
BASE301-B | 124-130 | 3 (5,15) | 3500 | 22310-004B
BASE301-C | 130-136 | 3 (5,15) | 3100 | 22310-004C
BASE301-D | 136-142 | 3 (5,15) | 3100 | 22310-004D
BASE301-E | 142-149 | 3 (5,15) | 3100 | 22310-004E
BASE301-F | 149-156 | 3 (5,15) | 2700 | 22310-004F
BASE301-G | 156-163 | 3 (5,15) | 2700 | 22310-004G
BASE301-H | 163-174 | 3 (5,15) | 2700 | 22310-004H
BASE301-K | 218-225 | 3 (5,15) | 2700 | 22310-004K
BASE301-X | 118-174 | 3 (5,15) | 3500 | *22310-004X
*) For X-version, place center frequency in comments.
