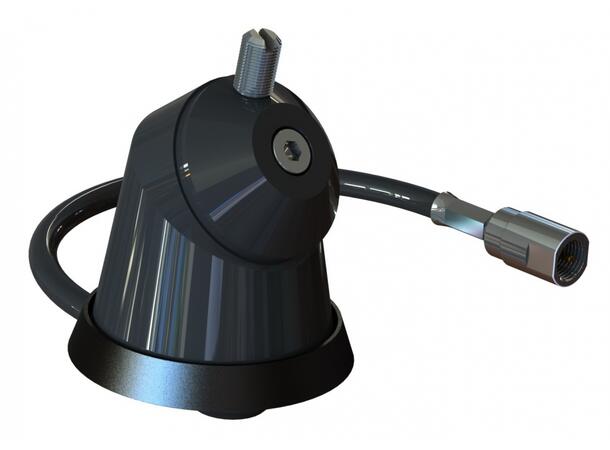

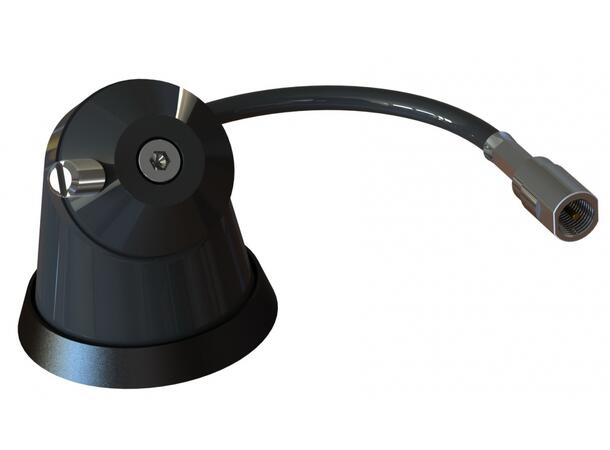

Scan antennefot SX

0,15 m kabel, FME-m

Varenr:131419
Scan antennefot SX 0,15 m kabel, FME-m Scan antennefot SX 0,15 m kabel, FME-m Scan antennefot SX 0,15 m kabel, FME-m Scan antennefot SX 0,15 m kabel, FME-m
Inkl. mva.499,-
-+
15 På lager

Strong and reliable universal mount for roof, trunk and wing mounting. It can be mounted from the inside as well as from the outside. It accepts antenna whips with external M5 threaded stud or with internal M6 thread (by use of the supplied M5/M6 threaded adapter)

  • UNIVERSAL MOUNTING
  • TILTABLE IN ALL DIRECTIONS

Color: Black

Weight: 100g

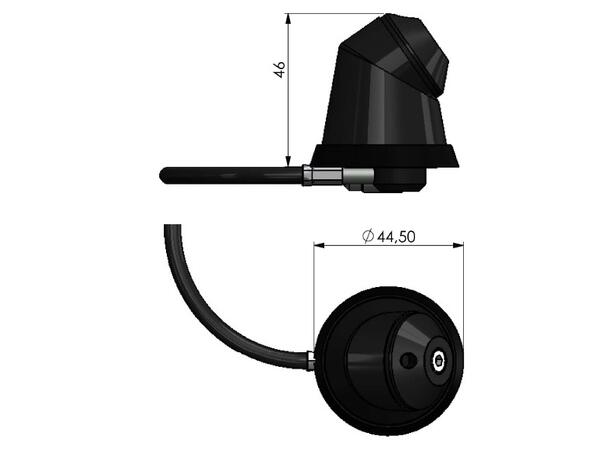

Diameter: Ø 45 mm

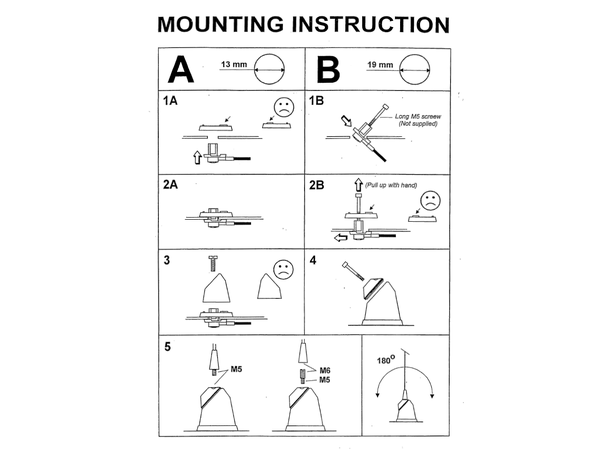

Mounting: Bolt-on (From inside or outside)

Mounting Place: On vehicle roof, trunk or wing

Height above roof: 46 mm

Mounting hole: Mounting from inside: Ø 13 mm, Mounting from outside: Ø 19 mm

Build-in Depth: Approx. 12 mm

Materials: PC, PE, brass and steel

Operating Temperature: -40C to +70C

Connector: FME male

Cable: 0,15 meter

Ingress protection: IP65 (When mounted)
